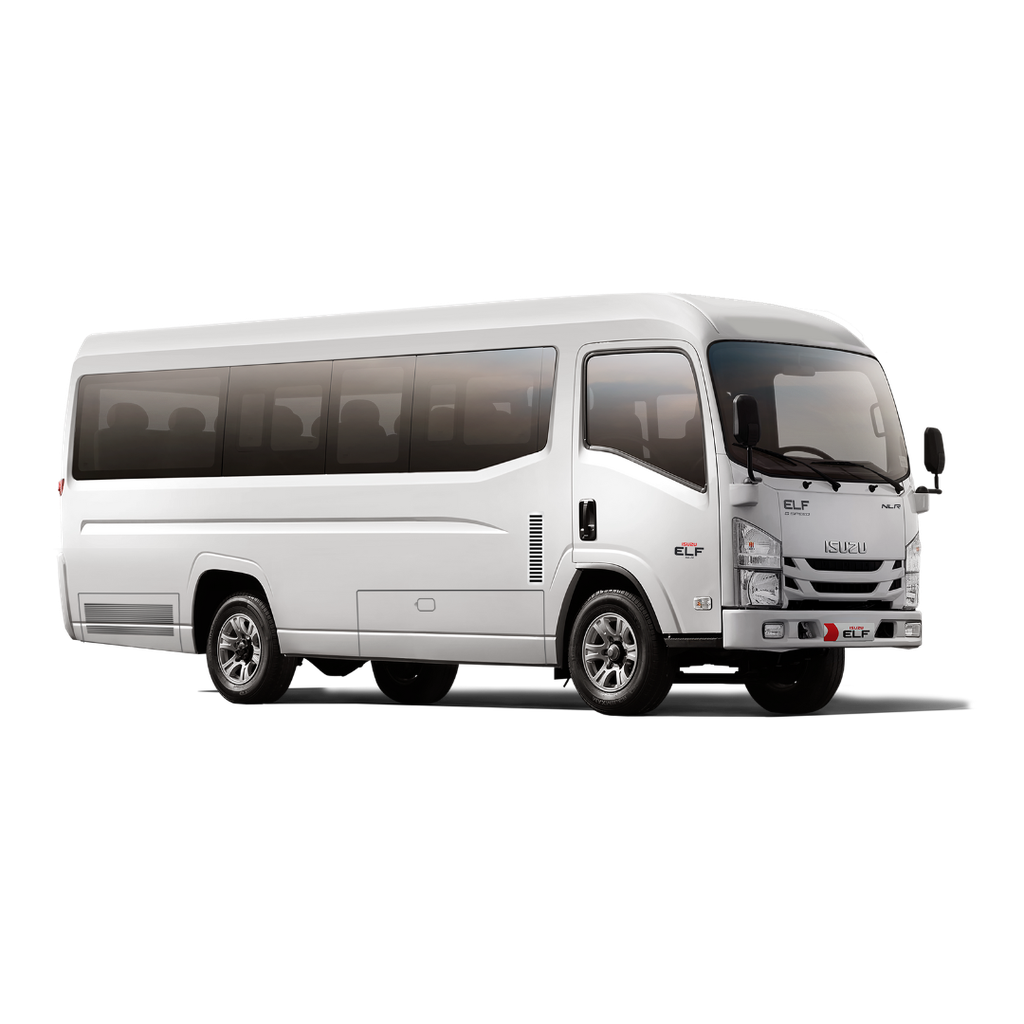

ELF MICROBUS

• Panjang / Over all Length (OAL) 4870 mm
• Cabin to End ( CE ) 3157 mm
• Tinggi / Over all Height (OH) 2165 mm
• Jarak Sumbu / Wheel Base (WB) 2490 mm
• Julur Depan / Front Over Hang (FOH) 1110 mm
• Julur Belakang / Rear Over Hang (ROH) 1270 mm
• Jarak Terendah ke Tanah / Min. Clearence (HH) 200 mm
• Jejak Depan/Front Thread (AW) 1475 mm
• Jejak Belakang/Rear Thread (CW) 1395 mm
• Kapasitas Penumpang Termasuk Pengemudi 15 + 1 (Driver)
• Lebar / Over all Width (OW) 1835 mm
• Diameter x Langkah 95.4 X 104.9 mm
• Torsi Maksimum 36/1500-2600 (Kg.m/rpm)
• Model Mesin 4JJ1-TCC
• Daya Maksimum 120/2600 ps/rpm
• Sistem Kontrol Emisi Euro 4 with EGR & DOC
• Full Tank Capacity 75 ltr
• Tipe Direct injection, Commonrail, DOHC, 4 cylinders with VGS Turbo Intercooler
• Tipe MYY6S
• 1st 5.979
• 2nd 3.434
• 3rd 1.862
• 4th 1.297
• 5th 1.000
• Mundur / Rev 5.701
• Final Gear Ratio 4.300
• 6th 0.759
• Depan Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda
• Belakang Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda
• Berat Kosong Kendaraan 1754 kg
• Berat Total Kendaraan / Gross Vehicle Weight (GVW) 5100 kg
• Kapasitas Gardan Depan 2460 kg
• Kapasitas Gardan Belakang 2640 kg
• Multimedia Audio Head Unit
• Perlindungan Garansi Warranty 3 Tahun/ 100,000 Km
• Kamera Mundur Tersedia
• USB Charging System Ada
• APAR Ada
• Fan Blower Ada
• Radius Putar 5,7 m
• Daya Tanjak 38 %
• Kecepatan Maksimal 116 Km/jam
• Ukuran Ban 225/75/R16
• Ukuran Velg 16 x 7.00
• Tipe Rem Hydraulic
• Rem kaki / Service Brake Hydraulic, saluran ganda dengan vacum booster
• Rem Tangan / Hand Brake Expanding pada transmisi belakang
• Sistem Pengereman Gas Buang / Exhaust Brake Exhaust brake, tuas berada di stir
• Aki / Accu 12-65 X 2 V-AH
• Alternator 24-50 V-A
