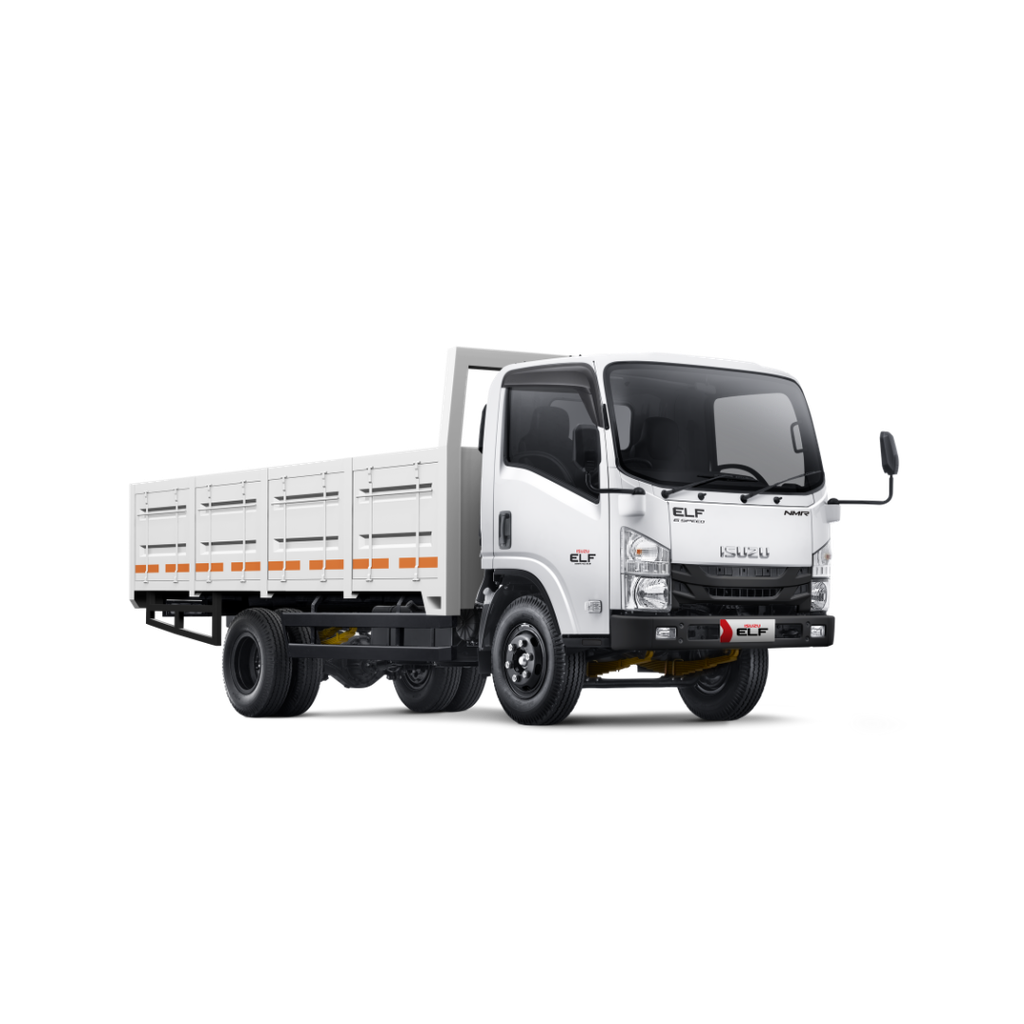

ELF NMR HD 5.8

• Panjang / Over all Length (OAL) 6135 mm
• Cabin to End ( CE ) 4530 mm
• Tinggi / Over all Height (OH) 2345 mm
• Jarak Sumbu / Wheel Base (WB) 3360 mm
• Julur Depan / Front Over Hang (FOH) 1110 mm
• Julur Belakang / Rear Over Hang (ROH) 1665 mm
• Jarak Terendah ke Tanah / Min. Clearence (HH) 200 mm
• Jejak Depan/Front Thread (AW) 1475 mm
• Jejak Belakang/Rear Thread (CW) 1495 mm
• Lebar / Over all Width (OW) 1990 mm
• Diameter x Langkah 115 x 115 mm
• Torsi Maksimum 41/1400-2600 (Kg.m/rpm)
• Model Mesin 4HL1-TCS
• Sistem Emisi Direct Injection, Commonrail, SOHC, 4 Cylinder, VGS Turbo Intercooler
• Volume Silinder Piston 4778 cc
• Daya Maksimum 150/2600 ps/rpm
• Full Tank Capacity 100 ltr
• Tipe MYY6S
• 1st 5.979
• 2nd 3.434
• 3rd 1.862
• 4th 1.297
• 5th 1.000
• Mundur / Rev 5.701
• Final Gear Ratio 5.857
• 6th 0.759
• Depan Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda
• Belakang Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda
• Berat Kosong Kendaraan 2572 kg
• Berat Total Kendaraan / Gross Vehicle Weight (GVW) 8250 kg
• Kapasitas Gardan Depan 5540 kg
• Kapasitas Gardan Belakang 2710 kg
• Fitur Tambahan Audio Head Unit, USB Charging System, APAR (Alat Pemadam Api Ringan), Fan Blower
• Perlindungan Garansi Warranty 3 Tahun/ 100,000 Km
• Kamera Mundur Tersedia
• Radius Putar 7.1 m
• Daya Tanjak 44 %
• Kecepatan Maksimal 100 Km/jam
• Ukuran Ban 7.50-16-14PR
• Ukuran Velg 16 x 6.00
• Tipe Rem Hydraulic
• Rem kaki / Service Brake Hydraulic, saluran ganda dengan vacum booster
• Rem Tangan / Hand Brake Expanding pada transmisi belakang
• Sistem Pengereman Gas Buang / Exhaust Brake Exhaust brake, tuas berada di stir
• Aki / Accu 12 V - 65 Ah X 2 V-AH
• Alternator 24-60 V-A
