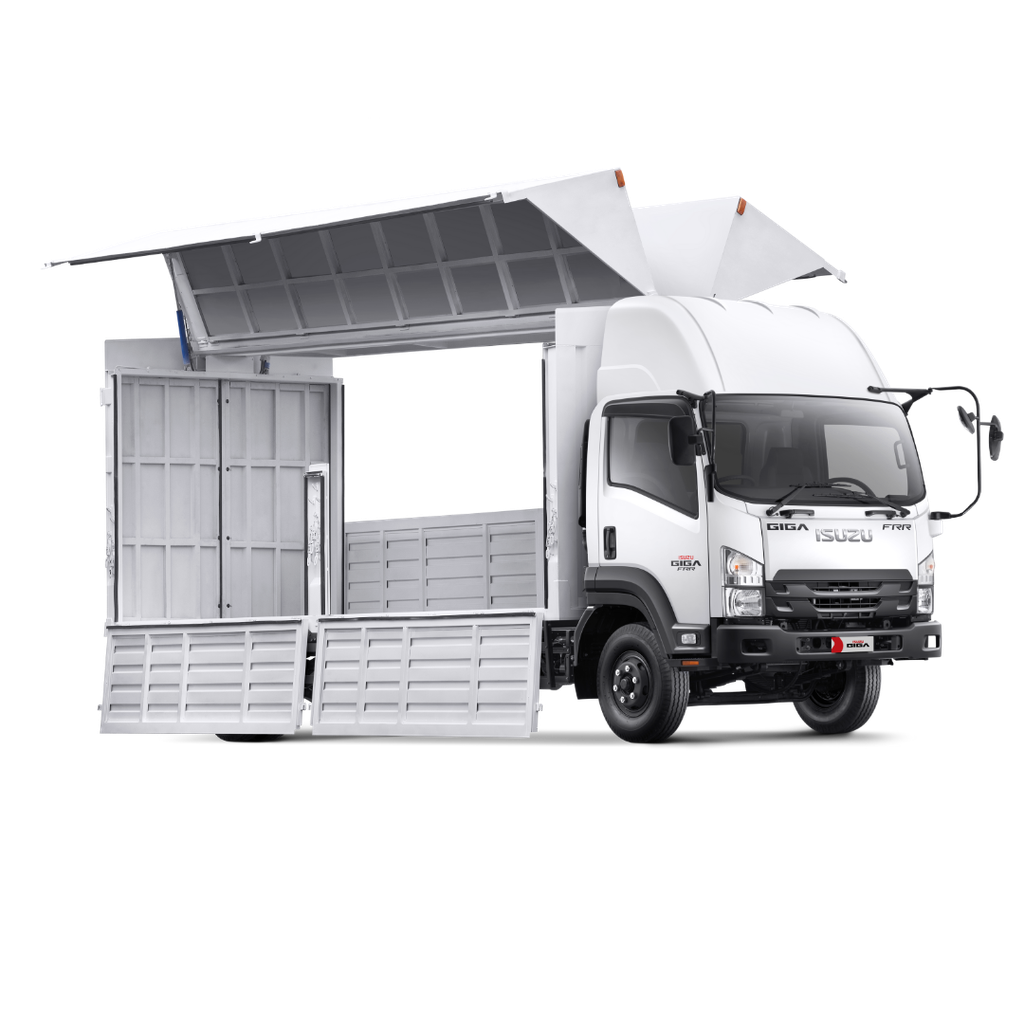

GIGA FRR Q 4X2

• Panjang / Over all Length (OAL) 8625 mm
• Cabin to End ( CE ) 6900 mm
• Tinggi / Over all Height (OH) 2550 mm
• Jarak Sumbu / Wheel Base (WB) 5320 mm
• Julur Depan / Front Over Hang (FOH) 1170 mm
• Julur Belakang / Rear Over Hang (ROH) 2135 mm
• Jarak Terendah ke Tanah / Min. Clearence (HH) 220 mm
• Dimensi Chassis 840 x 225x 6 mm
• Jejak Depan/Front Thread (AW) 1790 mm
• Jejak Belakang/Rear Thread (CW) 1660 mm
• Lebar / Over all Width (OW) 2200 mm
• Diameter x Langkah 115 x 125 mm
• Torsi Maksimum 52/1600-2600 (Kg.m/rpm)
• Model Mesin 4HK1-TCC
• Sistem Emisi Direct Injection Commonrail, OHC, 4 Cylinder, VGS Turbo Intercooler
• Volume Silinder Piston 5193 cc
• Daya Maksimum 190/2600 ps/rpm
• Full Tank Capacity 200 ltr
• Tipe MZZ6W
• 1st 6,369
• 2nd 3,767
• 3rd 2,385
• 4th 1,442
• 5th 1,000
• Mundur / Rev 6,369
• Final Gear Ratio 5.571
• 6th 0,720
• Depan Rigid suspension dengan multi leaf spring
• Belakang Rigid suspension dengan multi leaf spring
• Berat Kosong Kendaraan 3225 kg
• Berat Total Kendaraan / Gross Vehicle Weight (GVW) 10000 kg
• Kapasitas Gardan Depan 3200 kg
• Kapasitas Gardan Belakang 6800 kg
• Fitur Tambahan Rubber Damper Cabin Suspension, Audio Head Unit, USB Charging System, Alat Pemadam Api Ringan, dan Kamera Mundur
• Perlindungan Garansi Warranty 1 Tahun/ 50,000 Km
• Kamera Mundur Tersedia
• Radius Putar 8.2 m
• Daya Tanjak 40 %
• Kecepatan Maksimal 103 Km/jam
• Ukuran Ban 8.25-16-14PR
• Ukuran Velg 6STUD 16X6.00GS
• Tipe Rem Air Over hydraulic/AOH
• Rem kaki / Service Brake Air Over hydraulic
• Rem Tangan / Hand Brake Mekanisme Expanding di Transmisi Output
• Sistem Pengereman Gas Buang / Exhaust Brake Ada
• Aki / Accu 2 X 12 V - 65 Ah V-AH
• Alternator 24-50 V-A
