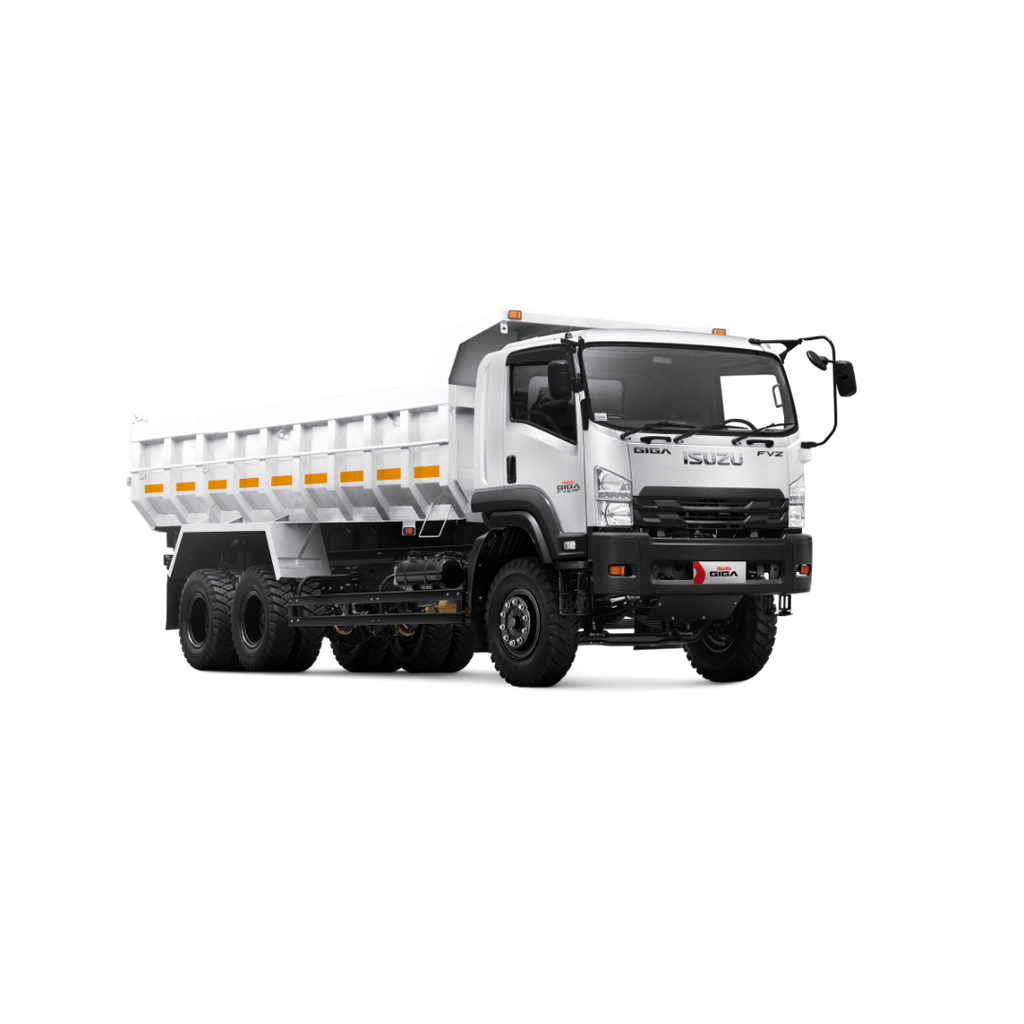

GIGA FVZ N HP 6X4

• Panjang / Over all Length (OAL) 8650 mm
• Cabin to End ( CE ) 6545 mm
• Tinggi / Over all Height (OH) 2975 mm
• Jarak Sumbu / Wheel Base (WB) 4115 + 1370 mm
• Julur Depan / Front Over Hang (FOH) 1250 mm
• Julur Belakang / Rear Over Hang (ROH) 1915 mm
• Jarak Terendah ke Tanah / Min. Clearence (HH) 285 mm
• Dimensi Chassis 870 x 305 x 8 mm
• Jejak Depan/Front Thread (AW) 2060 mm
• Jejak Belakang/Rear Thread (CW) 1850 mm
• Lebar / Over all Width (OW) 2485 mm
• Diameter x Langkah 115 x 125 mm
• Torsi Maksimum 90/1450-2400 (Kg.m/rpm)
• Model Mesin 6HK1-TCS
• Sistem Emisi Direct Injection, OHC, 6 Cylinder, Heavy Duty Commonrail, VGS Turbo Intercooler
• Volume Silinder Piston 7790 cc
• Daya Maksimum 285/2400 ps/rpm
• Full Tank Capacity 200 ltr
• Tipe ES11109DD
• Rendah / Low 12.638
• 1st 8.807
• 2nd 6.550
• 3rd 4.768
• 4th 3.548
• 5th 2.482
• Mundur / Rev 13.210
• Final Gear Ratio 6.143
• 6th 1.846
• 7th 1.344
• 8th 1.000
• Depan Rigid suspension with multi leaf spring
• Belakang Semi-elliptical alloy steel leaf with 6-link torque rod
• Berat Kosong Kendaraan 7430 kg
• Berat Total Kendaraan / Gross Vehicle Weight (GVW) 26000 kg
• Kapasitas Gardan Depan 6000 kg
• Kapasitas Gardan Belakang 20000 kg
• Fitur Tambahan Semi Float (Rubber) Damper Cabin Suspension, Audio Head Unit, USB Charging System, APAR (Alat Pemadam Api Ringan), Transmission PTO, Air Seat Suspension, Under Guard
• Perlindungan Garansi Warranty 1 Tahun/ 100,000 Km
• Kamera Mundur Tidak Tersedia
• Radius Putar 8.4 m
• Daya Tanjak 45 %
• Kecepatan Maksimal 83 Km/jam
• Ukuran Ban 11.00-20-16PR [RIB LUG]
• Ukuran Velg 10STUD 20X7.50T
• Tipe Rem Full Air
• Rem kaki / Service Brake Full Air with Drum Brake
• Rem Tangan / Hand Brake Mekanisme Tuas, dengan Air Valve
• Sistem Pengereman Gas Buang / Exhaust Brake Ada
• Aki / Accu 2 x 12 v -52 Ha V-AH
• Alternator 24-60 V-A
